Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YILUN
  • Model Number: TD75, DTII, DTIIA,TK,TKII
  • Roller material:: seamless pipe, welded pipe
  • Roller color:: red, orange, yellow, green, blue, black or as client request
  • Roller Application:: Coal mining industry, cement, harbor, crushing and screening industry
  • Certificate:: CE, ISO9001. SGS, BV
  • Roller diameter: 50mm-219mm
  • roller length:: 190-3400mm
  • Shaft end:: flat
  • speed:: 0.8-6.5m/s
  • Roller Lifetime:: At least 5000 hours
  • Belt width:: 500-1400mm

Packaging & Delivery

Packaging Details We packed the tail pulley with plywood box
Delivery Time within 15-20 days light tail pulley



Product Description

Conveyor tail pulley



Specifications

1/The pulley is made by large seamless steel.

2/Use flame cutting machine to precisely cut.

3/Weld the pulley inner disc with professional welding machine .

4/Weld the shaft sleeve and disc with the positioner.

5/Process the outside circle with large drum lathe to guarantee the even wall thickness .

6/We select #45 round steel and sleeve to ensure the concentricity and reduction for the eccentric shaft force.

7/Equip the inner bearing enlargement device to avoid bearing damage from beating.

 8/Make eliminating inner stress treatments when the pulley's withstand forces exceed 80KN,and do static balance inspection when the belt exceeds 2.5m/s.


 More than 12 years of experience in the production of conveyor roller/ilder/pulley/other parts and the conveyor finished

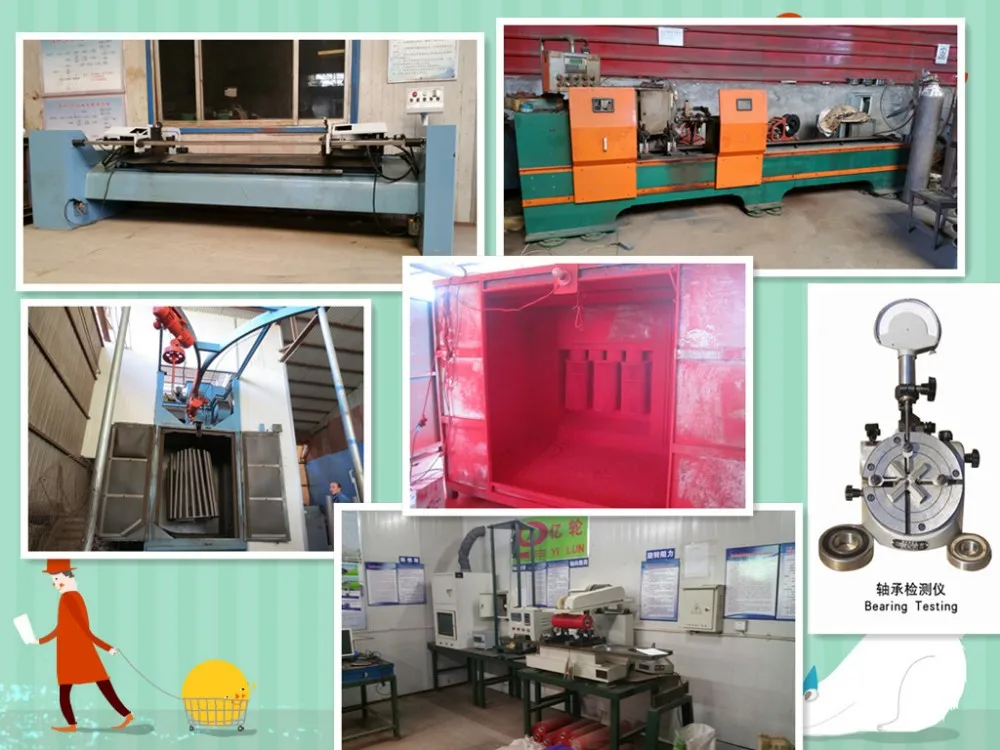

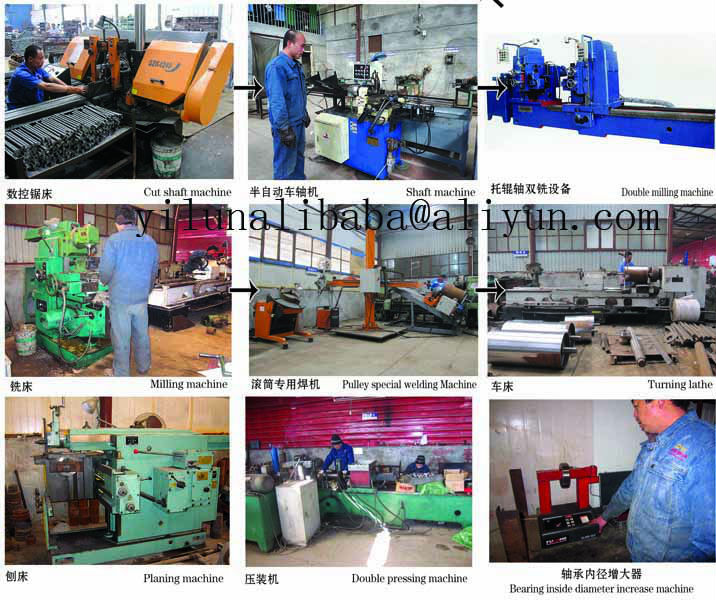

We have professional production equipment

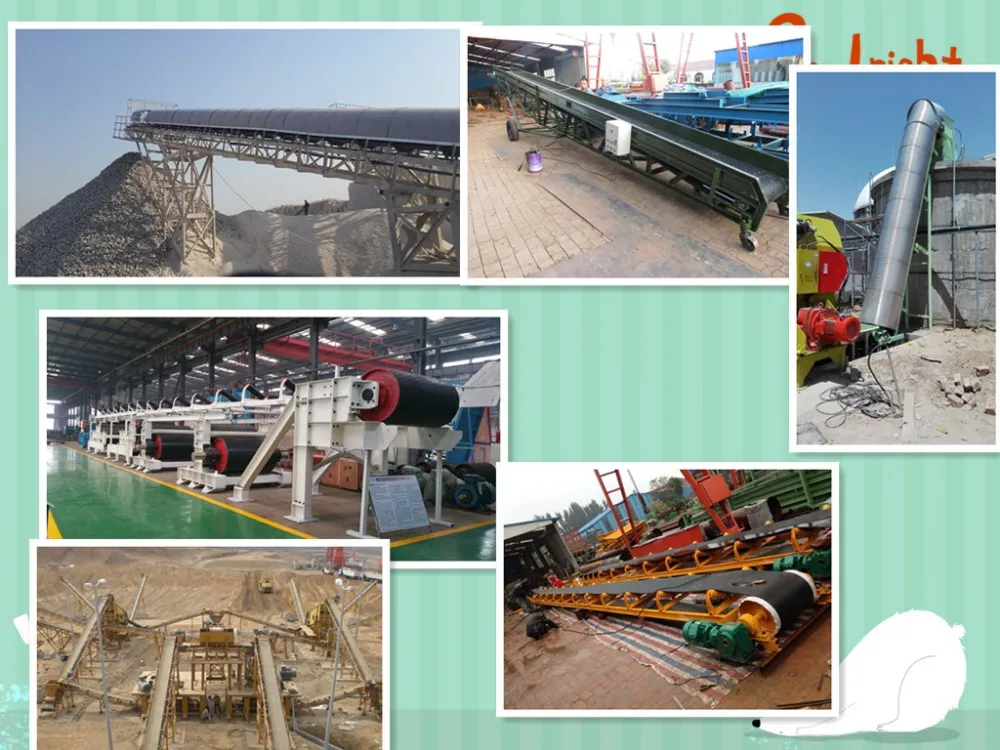

Aplication

2.Tube: Q235

3.Shaft: 45# STEEL

5.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting



Besides we can manufacture the rollers and idlers according to the buyers' requirements.

coated idler Diameter

(mm)

coated idler  Length Scope(mm)

Shaft Diameter

(mm)

Bearings Type(Min-Max)

coated idler’s Shell Wall Thickness

50

150-2500



20;25

204

3.2mm-4.0mm



63.5

20;25

204

76

20;25

204 205

89

20;25

204 205

3.2mm-6.0mm

102

20;25;30

204 205 305

3.5mm-6.0mm



108

20;25;30

204 205 305 306

114

20;25;30

205 206 305 306

127

20;25;30

204 205 305 306

133

20;25;30

205 206 207 305 306

140

20;25;30

205 206 207 305 306

152

20;25;30

205 206 207 305 306 307 308

4.0mm-6.0mm



159

20;25;30;40;45

205 206 207 305 306 307 308

165

20;25;30;40;45

207 305 306 307 308

4.5mm-6.0mm



177.8

20;25;30;40;45

207 306 307308 309

190.7

20;25;30;40;45

207 306 307308 309

194

20;25;30;40;45

207 307 308 309 310

219

20;25;30;40;45

308 309 310

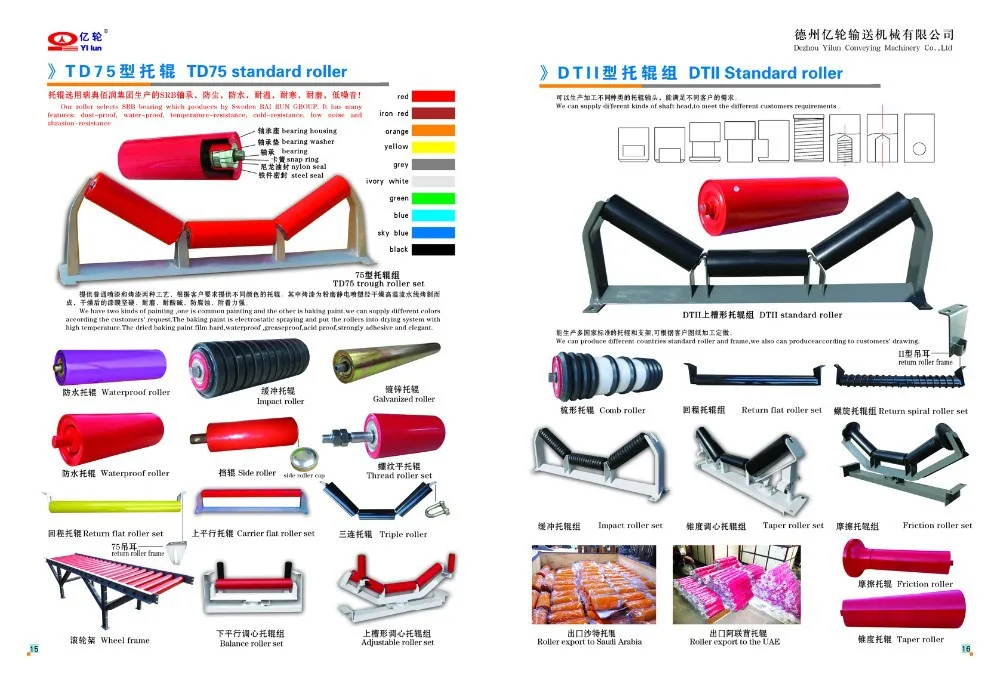

 other products

                            Why choose us?

 The only factory which could produce 2.5mm thickness roller well.





 We have professional production equipment



 big and clean plants and warehouse



you will not worry about the packing and transportation of your products

because many clients from any parts of the world are contented with our service



Q:what is the minimum order quantity?

   A: 50pcs for each item

Q: what is the delivery time?

   A: 10-20days after receiving the deposit

Q: what is the payment term?

   A: 30% T/T in advance, the balance against the copy of B/L, also you can choose EXW in cash paid usd or rmb.

 Q: can i order a sample?

A: of course, for the existing model we have, our factory would like to offer one or two pieces sample to customer and the air-freight charge shall be paid by customers; for customized model making shall be consulted.

 Q: can we use our own shipping agent?

A:of couse you could.

 Q: can you accept OEM service?

A: yes,OEM is acceptable, pls send email to us for more detail.

 Q:If i want to visit your factory, which is the nearest airport?

A: Jinan International airport, it only take about two hours from Jinan Airport to our factory.Also you can take fast train to Dezhou East station.It is only half hour by fast train to my factory.
