Quick Details

  • Condition: New
  • Type: Gravity Conveyor
  • Material: Stainless Steel, steel
  • Material Feature: Heat Resistant
  • Structure: Belt Conveyor
  • Load Capacity: 40t/h-4000t/h
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: YILUN, yilun
  • Model Number: B500/B650/B800/B1000/B1200/B1400
  • Voltage: 220V/380V
  • Power(W): 1.5kw-30kw
  • Certification: ISO9001,2000
  • After-sales Service Provided: Engineers available to service machinery overseas
  • type: belt conveyor
  • belt width: 500mm/650mm/800mm/1000mm/1200mm/1400mm
  • belt speed: 0.8m/s-4m/s
  • load capacity: 40t-3000t/h
  • transport degree: 0-22
  • packing: packing into plywood

Packaging & Delivery

Packaging Details The conveyor will divided into some parts before shipping,then the parts will packing into plywood case.
Delivery Time 7-15 days after get the advance payment

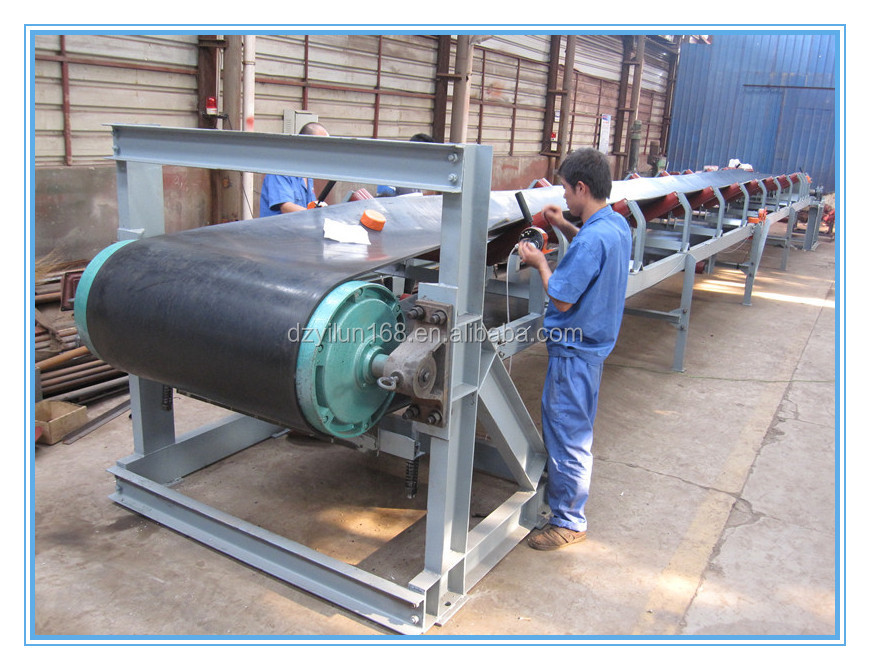

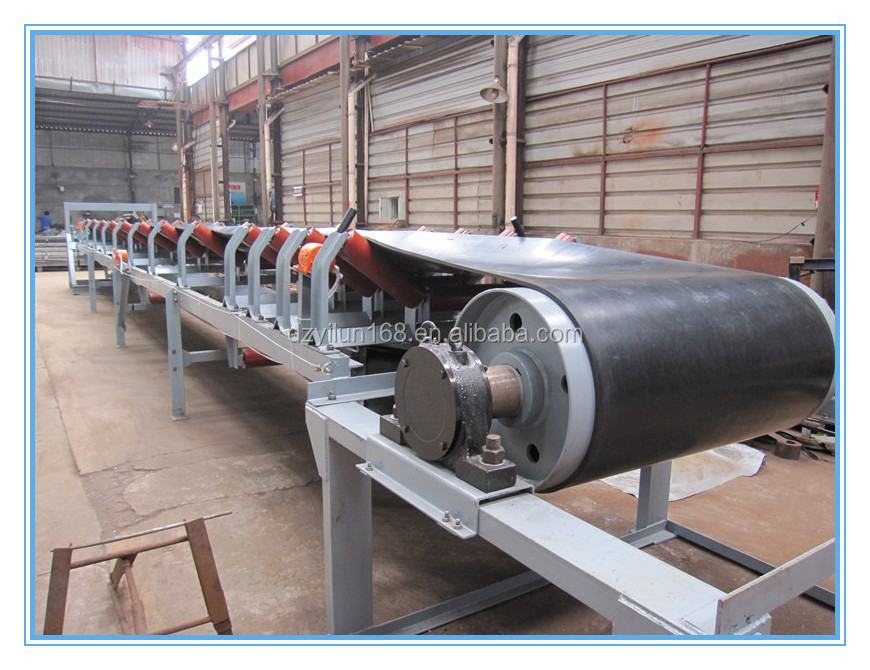

Belt Conveyor

Product Description

1.Feature of conveyor belt

1. Large conveying capacity, long sending distance, and with low noise;
2. Simple structure, easy maintenance, low power consumption;
3. According to different transferring requirement, the transfer system can be one independently or multi-conveyors or

combined with other transfer equipments;
4. The belt conveyors can be operated in the circumstance temperature range from -20 °Cto +40°C, and the temperature of

transferred material should be lower than 50°C;
5. Can be used as the corollary equipment of stone crusher.


The belt conveyor is widly used in mine,coal,chemistry,cement and other transportation department


2.Working principle


 Based on its properties such as the inner friction and side pressure, the bulk has its inner pressure increased by the towing force in its moving direction from the driving drum in the belt trough, thus the internal friction between the particles becomes larger. When the tiltangle is within a certain range, such friction can ensure the material layers are in stable conditionand move as a whole. When the internal friction between material layers is greater than the external friction from the belt, the supporting roller under the belt moves forward together with the materials, and when the ratio of internal and external forces meets certain conditions, the material flow will be stable.

3.Technical Parameters

 belt width(mm) belt speed(m/s) loading capacity(m3/h)transfer degree
 500 0.8-2.5 69-217  0-22°
 650 0.8-2.5  127-397  0-22°
800    0.8-3.15 198-781  0-22°
 1000 0.8-4.0 324-1622  0-22°
 1200 1.0-5.0 593-2971  0-22°
 1400 1.0-5.0825-4130   0-22°
 1600 2.0-5.6 2186-6122  0-22°
 1800 2.0-6.5 2785-9083  0-22°
 2000  2.0-6.5 3470-11277  0-22°
 2200 3.15-6.5 6843-14120  0-22°
 2400  3.15-6.58289-17104   0-22°

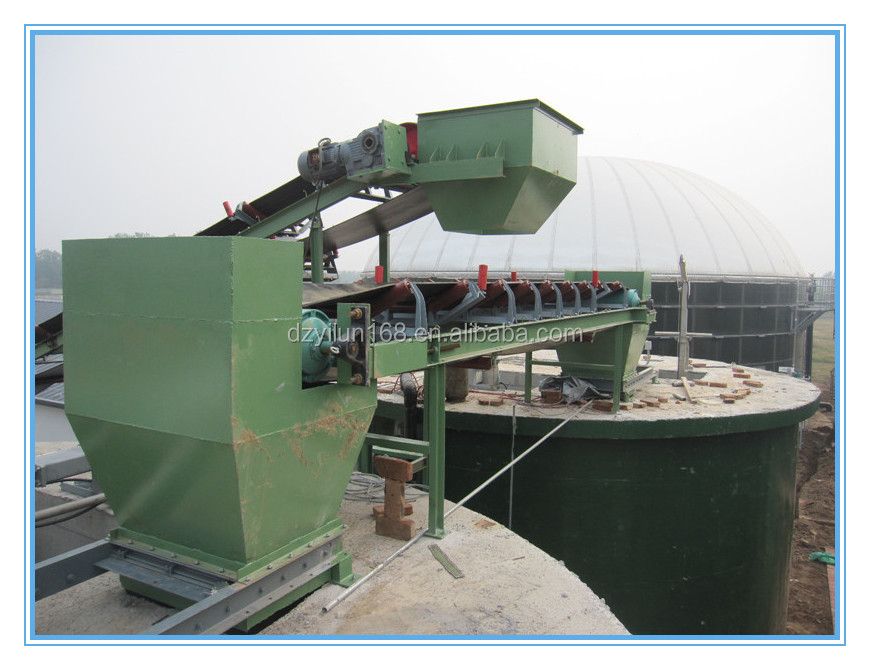

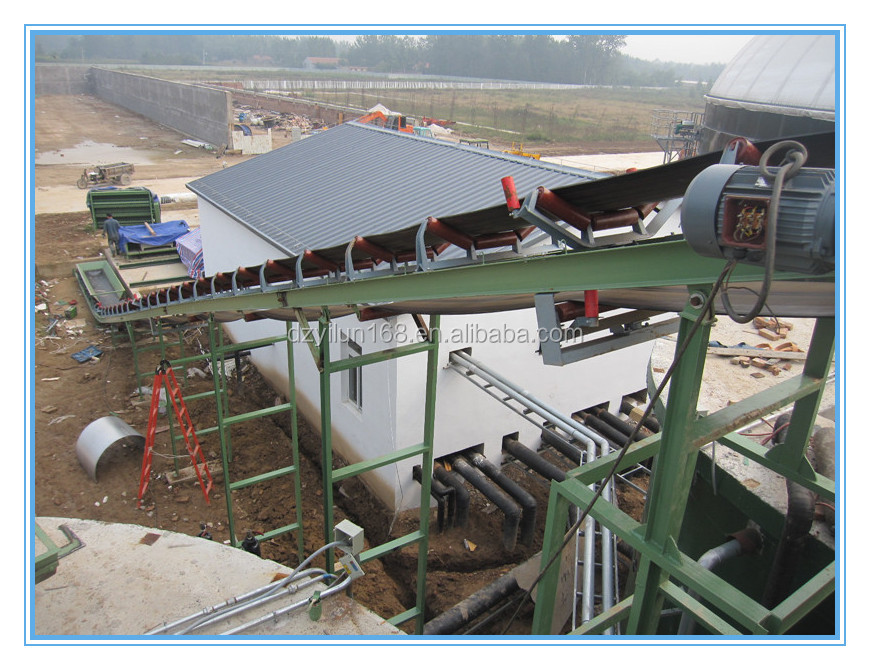

Conveyor belt used in project:


Packaging & Shipping




The shipping for our product is generally by sea.For the sample order or small order,By air or expressage is also acceptable.



Company Information



For our company,The credibility is the base for development and the quality is also put at first.Strengthen the inner control and improve the quality constantly.The best service will supply for every client.


Our company will be the best choice in Conveying Machinery or parts.If you have any suggestion about our product,Please feel freely to inform me at any time.The best service will supply for us ASAP.Wish to get a chance to cooperate with you in Early days.
